Aperçu /Produits/Plate-forme de forage pneumatique/Water well drilling depth etc. FY260 260 Meter Crawler Water Well Pneumatic Rotary Drilling Rig Machine Prices For Sale

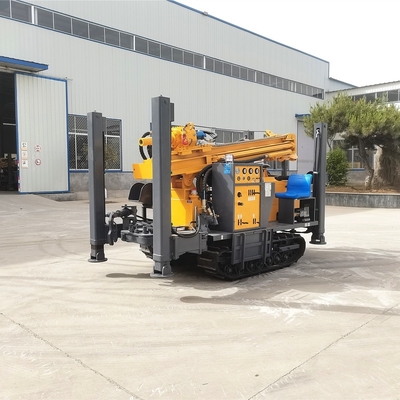

Water well drilling depth etc. FY260 260 Meter Crawler Water Well Pneumatic Rotary Drilling Rig Machine Prices For Sale

1 Set
MOQ
$1.00(>=1 Sets)
Prix
Water well drilling depth etc. FY260 260 Meter Crawler Water Well Pneumatic Rotary Drilling Rig Machine Prices For Sale
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Applicable Industries: Building Material Shops, Manufacturing Plant, Farms, Construction works , Energy & Mining, Drill RigPortable Open Pit Mining Driller Rig, water well drilling
Showroom Location: Thailand, Ghana
Condition: New
Type: water well drilling rig
Power Type: Diesel
Usage: water well
Voltage: 380V
Dimension(L*W*H): 4000*1850*2300 mm
Weight: 6500 KG
Warranty: 1 year
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Pressure vessel, Bearing, Engine, Gearbox
Key Selling Points: Famous brand low voltage components
Drilling Diameter: 140-305 mm
Drilling Depth: Max.280m
Mobility: Moveable
Product name: FY260 200 meter crawler water well drill machine
Application: water well etc
Diesel engine: xichai
Model: FY260
Drilling diameter: 140-305 mm
Drilling depth: 260m
Drill rod length: 76*3m ; 89*3m
Air consumption: 17-31
Swing torque: 4500-6000 Nm
One time advance length: 3.3 m
Local Service Location: Thailand, Ghana
Certification: ISO9001
Informations de base
Certification: ISO9001
Model Number: FY260
Conditions de paiement et expédition
Packaging Details: nude packing FY260 Drilling Depth 260 Meter Crawler Pneumatic Rotary Water Well Drilling Rig Machine Prices For Sale
Supply Ability: 1000 Set/Sets per Month feida FY260 DTH water well drilling rig 280 meter crawler
Description de produit
Product Description


FY260 Drilling Depth 260 Meter Crawler Pneumatic Rotary Water Well Drilling Rig Machine Prices For Sale
Specification
Data sheet
Drilling Diameter
140-305 mm
Drilling Depth
260 m
Drill pipe diameter
76； 89
Air Consumption
17-31 m3/min
Working Pressure
17-30 bar
Swing torque
4000-5300 Nm
Drill pipe length
1.5 m 2.0 m 3.0 m
Dimension (L*W*H)
4000*1850*2300 mm
Unit Weight
6500 kg
One-time advance length
3.3 m
Walking speed
2.5 km/h
The penetration efficiency
15-35 m/h
Equipped power
70 kw
Swing speed
45-70 rpm
The engine brand
Xichai engine
High leg stroke
1.4 m
Climbing angles (Max)
30°
Equipped with hammer
Medium and high wind pressure series
Customer Photos
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
