Aperçu /Produits/plate-forme de forage rotatoire hydraulique/Exploration Geological Crawler Portable Hydraulic Core Drilling Rig Diamond Core Drilling Rig

Exploration Geological Crawler Portable Hydraulic Core Drilling Rig Diamond Core Drilling Rig

1.0 Sets
MOQ
Exploration Geological Crawler Portable Hydraulic Core Drilling Rig Diamond Core Drilling Rig
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining
Showroom Location: None
Condition: New
Type: Core Drilling Rig
Power Type: Diesel
Usage: Ore
Dimension(L*W*H): 5300*2200*2820
Weight: 7800kg
Warranty: 1 YEAR(Except consumables and man-made damage)
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Pump, Gear, Engine, Gearbox
Key Selling Points: Competitive Price
Name: Hydraulic surface core drilling rig
Application: Geological Exploration
Drill Angle: -90~0°
Drill Head Max. Lifting Force: 108KN
Drill Head Max. Thrust Force: 55KN
Mast Sliding Distance: 800mm
Engine Model: 6BTA5.9-C125
Engine Power: 125KW/2000rpm
Local Service Location: Russia
Certification: ISO9001;ISO14001;CE
Informations de base
Certification: ISO9001;ISO14001;CE
Model Number: 6BTA5.9-C125
Conditions de paiement et expédition
Packaging Details: cartons
Supply Ability: 10 Set/Sets per Month Crawler portable hydraulic core drilling rig diamond core drilli
Description de produit

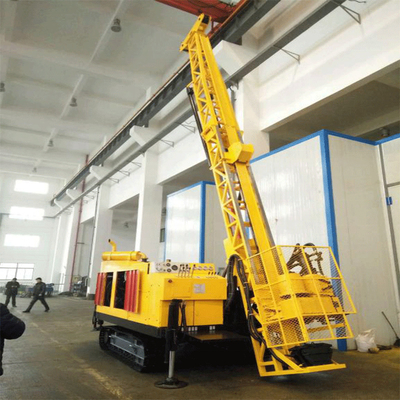

Crawler portable hydraulic core drilling rig diamond core drilling rig

Product Display

Model

YDX-1200L

YDX-120OT

Borehole Diameter/ Depth

BQ/1400m; NQ/1200m;

HQ/850m; PQ/600m

Drill Angle

-90~0°

Drill Head Rotary Speed(FR/RE)

113-165rpm; 237-345rpm;

437-636rpm; 750-1100rpm

Max Output Torque of Drive Power Head

5270Nm

Drill Head Feeding Stroke

3500mm

Drill Head Max. Lifting Force

108KN

Drill Head Max. Thrust Force

55KN

Main Winch (Lifting Drill Rod)

Max Lifting Ability

75KN

Hoisting Speed

0.62m/s

Assistant Winch (Wire-line Coring)

Max Lifting Ability

1200KN

Hoisting Speed

2.01m/s

Mast Sliding Distance

800mm

Engine Model

6BTA5.9-C125

Engine Power

125KW/2000rpm

Chassis Model

Crawler type

(YDX-1200)L

Trailer-mounted (YDX-1200)T

Overall Dimension(Drill Reduce Type)

5300×2200×2820mm

5300×1950×2200mm

Drilling Rig Weight,appx.

7800kg

6500kg
Application Scenario

Other Products
Company Profile

Our Certificate

FAQ

Q:Why choose us?

A:The company has used the dedicated CNC, and gotten the quality of inspection and detection means. On January 24th of 2014, Wuxi Jinfan Drilling Equipment Co., Ltd., has successfully been listed on the NEEQ.

Q:Are you are manufacturer or trading company?

A:We have both trading compang and factory.

Q:How about your customer service?

A:We have customer support team of 13 years experience.

We offers best service to all the customers over the world with tremendous technical strength and high quality of products. If you have any question,please contact us an soon as possible.
