Aperçu /Produits/Machines de forage à disque dur/Construction works   XZ680A HDD INSTALLATION WITH ONE YEAR WARRANTY PERIOD FOR TRENCHLESS PROJECTS

Construction works   XZ680A HDD INSTALLATION WITH ONE YEAR WARRANTY PERIOD FOR TRENCHLESS PROJECTS

1 Unit
MOQ
$175,000.00(1 - 1 Units) $170,000.00(>=2 Units)
Prix
Construction works   XZ680A HDD INSTALLATION WITH ONE YEAR WARRANTY PERIOD FOR TRENCHLESS PROJECTS
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Warranty: 1 Year
Applicable Industries: Construction works , Energy & Mining
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Engine, Pump
UNIQUE SELLING POINT: Excellent Performance
Model: XZ680A HDD rig
Engine model: QSL8.9-C360
Engine power: 242kw/2100
Max thrust/pullback force: 800kn
Max carriage thrust/pulback speed: 35m/min
Max spindle torque: 35000N.m
Max spindle speed: 110r/min
Max flow rate of mud pump: 600L/min
Usage: Trenchless projects
After-sales Service Provided: Video technical support
After Warranty Service: Video technical support, Online support, Spare parts
Local Service Location: None
Informations de base
Model Number: XZ680A HDD rig, QSL8.9-C360
Conditions de paiement et expédition
Packaging Details: As for XZ680A horizontal directional drill / XZ680A HDD rig, we usually transport it together with its accessories by Ro-on Ro-off shipment or Bulk shipment.
Supply Ability: 10 Unit/Units per Month
Description de produit

When communities count on you for water, power and internet, you need to be able to count on your utility installation equipment.



Utility installation is critical to community development. You need to be able to work in the most rural, remote areas; the most congested, populous cities; and in a range of ground conditions — from hard rock to clay and cobble.



SHANDONG TANGMIHANBEI IMPORT AND EXPORT CO., LTD offers a complete lineup of high-quality utility installation equipment, including horizontal directional drills, trenchers, pipe jacking machine, vacuum truck, mini skid steers, reclaimer, mud pump, slurry mixing system and a wide range of HDD tooling and accessories.

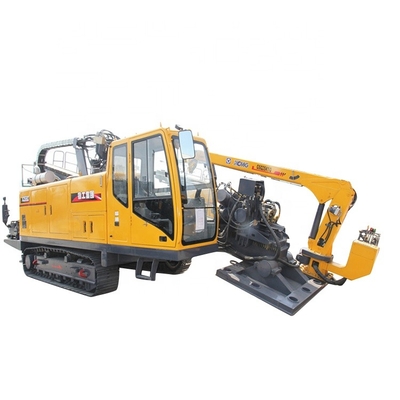

                                     XZ680A HORIZONTAL DIRECTIONAL DRILL / XZ680A HDD RIG

                                             ITEM

                   PARAMETER

Engine

Make

Cummins

Model

QSL8.9-C360

Rated Power

242KW / 2100 R/Min

Operation

Type

Rack and pinion

Max. Thrust /Pullback Force

800/800KN

Max carriage thrust/pullback travel speed

35M/Min

Max. Spindle Torque

35000 N·M

Max. Spindle Speed

110 R/Min

Type

Self-Propelled Steel Track

Ground Travel Speed

3.0 Km/h

Drill Rod/ Drill pipe

Diameter ×Length

Φ102mm×6000mm

Entry Angle

18°

Mud Pump

Max flow rate

600L/Min

Max pressure

10

Overall Weight

21T

Overall Dimension

11610×2475×3115mm
