Aperçu /Produits/Machines de forage à disque dur/Construction works   XZ200 HDD INSTALLATION WITH ONE YEAR WARRANTY PERIOD FOR TRENCHLESS PROJECTS

Construction works   XZ200 HDD INSTALLATION WITH ONE YEAR WARRANTY PERIOD FOR TRENCHLESS PROJECTS

1 Unit
MOQ
$50,000.00(1 - 1 Units) $48,500.00(>=2 Units)
Prix
Construction works   XZ200 HDD INSTALLATION WITH ONE YEAR WARRANTY PERIOD FOR TRENCHLESS PROJECTS
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Warranty: 1 Year
Applicable Industries: Construction works , Energy & Mining
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Engine, Pump
UNIQUE SELLING POINT: Excellent Performance
Model: XZ200 HDD Rig
Engine model: QSB5.9-C150
Engine power: 113kw/2200
Max thrust/pullback force: 225kn
Max carriage thrust/pulback speed: 26m/min
Max spindle torque: 6350N.m
Max spindle speed: 160r/min
Guarantee period: One year
Usage: Trenchless projects
After-sales Service Provided: Video technical support
After Warranty Service: Video technical support, Online support, Spare parts
Local Service Location: None
Informations de base
Model Number: XZ200 HDD Rig, QSB5.9-C150
Conditions de paiement et expédition
Packaging Details: As for XZ200 horizontal directional drill / HDD rig, we usually transport it together with its accessories by 40 feet container.
Supply Ability: 10 Unit/Units per Month
Description de produit

When communities count on you for water, power and internet, you need to be able to count on your utility installation equipment.



Utility installation is critical to community development. You need to be able to work in the most rural, remote areas; the most congested, populous cities; and in a range of ground conditions — from hard rock to clay and cobble.



SHANDONG TANGMIHANBEI IMPORT AND EXPORT CO., LTD offers a complete lineup of high-quality utility installation equipment, including horizontal directional drills, trenchers, pipe jacking machine, vacuum truck, mini skid steers, reclaimer, mud pump, slurry mixing system and a wide range of HDD tooling and accessories.



XZ200 HDD RIG TECHNICAL PARAMETER:

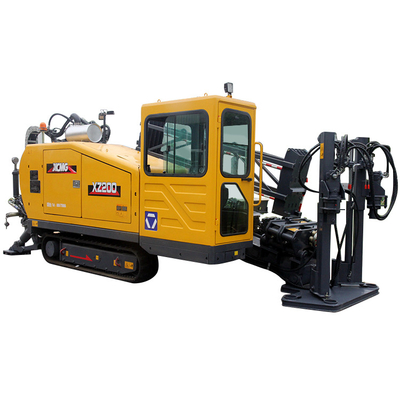

                                         XZ200 HORIZONTAL DIRECTIONAL DRILL/XZ200 HDD RIG

                                            ITEM

                 PARAMETER

Engine

Make

Cummins

Model

QSB5.9-C150

Rated Power

113KW / 2200 R/Min

Operation

Type

Rack and pinion

Max. Thrust /Pullback Force

225/225 KN

Max carriage thrust/pullback travel speed

26M/Min

Max. Spindle Torque

6350N·M

Max. Spindle Speed

160 R/Min

Type

Self-Propelled Steel Track

Ground Travel Speed

3.0 Km/h

Drill Rod/ Drill pipe

Diameter ×Length

Φ60 mm×3000mm

Entry Angle

10~20°

Mud Pump

Max flow rate

250L/Min

Max pressure

8

Overall Weight

8.5T

Overall Dimension

5900×2020×2400mm
